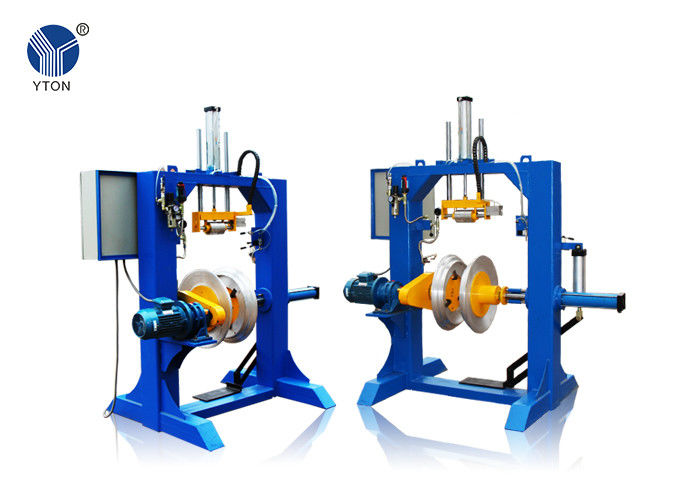

Full Sets Tire Building Machine , Truck Tire Retreading Equipment MTT-06

Full Sets Tire Retreading Machine Building Machine For Truck Tyres



Standard function description:



1, Auto air inflation and with portal frame, exact centering.

2, Separate building roller, increase air exhaust efficiency.

3, Double rotation speed control.

4, Break control by foot switch.



Technical description:



Overall: 1200mm*2300mm*2400mm

Gross weight: 800 KG

Rim diameter range:14’’,15’’,16’’,20’’,22.5’’

Air pressure: 0.75MPA

Voltage & frequency: 380V

Power: 1.5KW

Average building time: 8min



First—Select tyres



Selected the suitable tyres from the waste tyres for retreading.

Manual work

Using tyre checking machine



Second—Buffing tyres



After selected, using tyre buffing machine grind the tyres, buffing to the distance from rubber line only 3-2mm, it can automatic control the distance.

Please note there is no stones and other sundry on the tyre.



Third—Repair tyre crown(the tyre tread after buffing)



Repair the tyre on the tyre repair stand, using repair tools clean the holes, rubdown the thread residue of TBR, processing the steel wire of wire bead.



Fourth—Tyre cavity repair



Using tyre checking machine, expend the tyre cavity, repair the holes, different sizes holes use different strengthening layers.



Fifth—Brush coating



After repairing, brush the glue (cushion rubber and 120#gasoline mixer), dry it in the air about 30mins.



Sixth—Extrude rubber strips



The tyres was sharped in the high speed way, after the above repairing, there will be a few mm sag, which need to fill in some rubber strip. If not, the empty parts will foam concrete pavement when the tyre in the high speed running.



Seventh—Stick the middle rubber



After extruded the rubber strips, stick the middle rubber, to ensure curing the buffing tread and rubber tread rubber.



Eighth—Stick tyre tread



When finished the above process, stick one layer tread rubber, it is the main material for tyre retreading. Select the best quality tread rubber, make a high quality renew tyre.



Ninth—Install the envelop



Using envelop spreader machine install the envelops. It will create a good physical condition for tyre curing, inflate the envelops to keep a balance pressure.



Tenth—Install inner tube, flap and rim



The rim can support the inner tube, when the chamber pressure and inner tube extrusion pressure.





Eleventh—Put tyres on the multi-function tyre frame

Put the packed tyres on the frame, then put them into curing chamber.



Twelfth—Curing



Mould curing machine with half-part mold, segment mold or cone mold



Thirteenth—Final inspection



After vulcanizing the tyres, using the high pressure inspection machine test the tyres strictly.
