Professional Tire Curing Chamber Vulcanization Tank YTL-02 For Tyre Retreading

China Professional Tire Curing Chamber Vulcanization Tank YTL-02 For Tyre Retreading supplier

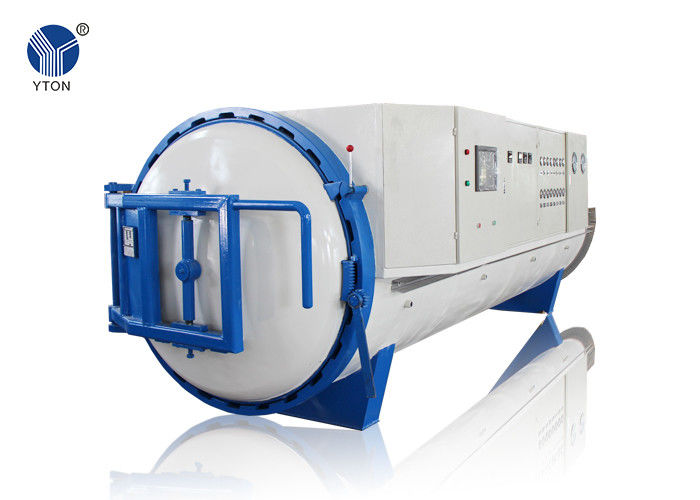

Large Image :  Professional Tire Curing Chamber Vulcanization Tank YTL-02 For Tyre Retreading

Product Details:

Place of Origin: Zhejiang China
Brand Name: YTON
Certification: CE
Model Number: YTL-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard package for export
Delivery Time: 20~30 work days
Payment Terms: T/T L/C
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Another Name: Vulcanization Tank Gross Weight: 4500 KG
Air Pressure: 0.75 MPA Voltage & Frequency: 380V
Average Curing Time: 5 Hours Size: 2300mm * 2300mm * 7300mm

New Generation Curing Chamber For Used Tyre Retreading Machine



Vulcanizing machine



Equipment for retread tire

Specs Φ1500-Φ4700L(the dimension can according to customer’s requirement to design)

The interlocking device is the first important point to ensure the acceptable product. The equipment can be heated by electric, steam or conduction oil. Before working, you can adjust the pressure, temperature and time on the control panel.

Temperature: 95~120°C

Pressure:0.5~0.6Mpa

Automatic pressure: 0.7~0.8Mpa

Entire pressure: 0.4Mpa

Entire working time :When the time is up to 100 degrees, pressure is 0.48Mpa, the machine begin automatic work.

Operating after manual closing the door, the fast opening door motor contact, push the close button, the Vulcanizing boiler enter the status of self-control.



Parts of tread process:



10, vulcanization

A curing chamber applies heat and pressure, and over time, causing the bonding layer to cure, permanently adhering the new tread to the prepared casing. If there are any problems in vulcanizing, it will make the retreading tyres to gap. The tyres for truck need several hours to vulcanize, need the experienced and responsible operators. Now the advanced plants adopt the curing chamber auto controlled by computer, which can complete vulcanize automatically and exactly.



11, final inspection

A final inspection is performed to ensure the tire in perfect operating condition depending visual, hands-on inspection. In some countries and regions, the finished product must be checked in high gas-pressurized state, but special protective equipment is necessary to reduce the operation risk. Laser non-destructive checking equipment has been used in some advanced plants. By spraying paint, the qualified production can be put into use after 24 hours.

Professional Tire Curing Chamber Vulcanization Tank YTL-02 For Tyre Retreading
