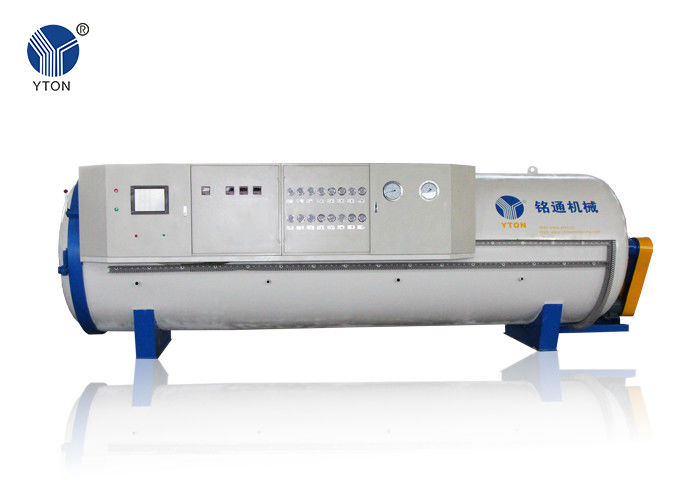

YTL-04 Tyre Retreading Equipment Tires Curing Chamber Environmental Protection

China YTL-04 Tyre Retreading Equipment Tires Curing Chamber Environmental Protection supplier

Large Image :  YTL-04 Tyre Retreading Equipment Tires Curing Chamber Environmental Protection

Product Details:

Place of Origin: Zhejiang China
Brand Name: YTON
Certification: CE
Model Number: YTL-04

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard package for export
Delivery Time: 20~30 work days
Payment Terms: T/T L/C
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Another Name: Tires Curing Tank Size: 2300mm* 2300mm*6300mm
Weight: 3800 KG Air Pressure: 0.75 MPA
Power: 52/63KW Voltage: 380V

Curing Chamber For Tyre Retreading Equipment Environmental Protection



The complete retreading production line process as follow :

tyre clean firstly dry tyre → inspecting tyre → buffing tyre → buffing outer wound of tyre → buffing inner wound of tyre → secondly inspecting tyre → repair inner wound → brushing adhesive on roof of tyre → secondly drying tyre → repair outer wound → affix middle rubber piece → tread building →assemble envelop → assemble inner tyre → assemble curing rim → inspecting inner tyre and curing rim → curing→ disassemble curing rim→ disassemble inner tyre → disassemble envelop → inspect end product → embellish tyre→ store tyre.



Standard function description:

1,Fast open door and three trip lock for safety.

2,PLC system controls temperature, pressure, and curing time.

3,The pressure, temperature record can be saved for 1 month during the curing process; it can be checked anytime for previous producing temperature and pressure.

4,Operate page have variety of language selecting, even small language can meet the need of user.

5,Automatic compensation functions on temperature, pressure and time.

6,Without inner tube, different pressure control system for envelope and curing chamber.

7,Three kinds heating for selecting: eclectic heating, steam heating, oil heating (standard one is electric heating, if select oil heating, extra add a conduction oil stove.)



Technical description:

Overall:2300mm* 2300mm*6300mm

Gross weight:3800 KG

Suitable for tire range: tire external diameter ≤1.2M.

Air pressure: 0.75 MPA

Voltage & frequency: 380V

Power:52/63KW

Average curing time: 5 hours.

Characteristic:PLC automatic control.



YTL-04 Tyre Retreading Equipment Tires Curing Chamber Environmental Protection
