| Another Name: | OTR Tyre Sander | Size: | 2600mm*2300mm*2300mm |
|---|---|---|---|
| Weight: | 2200 KG | Power: | 18 KW |
| Voltage: | 380V | Working Time: | 20 Min |
| High Light: | tire vulcanizing equipment,tyre production line |
||

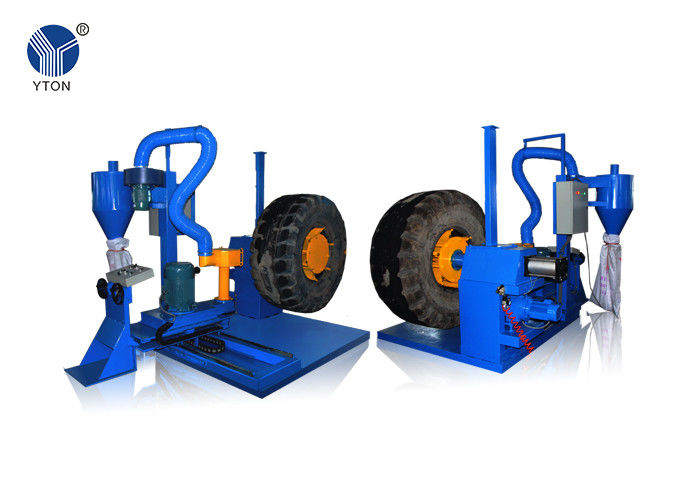

Cold Tire Retread Used Tyre Retreading Machine OTR Tire Buffing Machine
Standard function description:
1, Buffing radial range: 450~800 mm.
2, Buffing machine have dust collecting system, it can automatically collect rubber powder into bag, smoke through the pipeline to outdoor.
3, Auto air inflation, before the grinding, inflate certain pressure into the tire; remain the tire outline in normal shape.
4, With double pressure protection device can better ensure the safety of the pressure.
5, With portal frame, exact centering, buffing different size of tires, easy to change exclusive chuck.
6, Automatic tire lifting, reduce the labor force.
7, With hydraulic automatic control of grinding surface radian, swinging.
Optional function:
Sidewall buffing and brushing arm.
Tread circumference measurement.
Manual shoulder buffing.
Double arc shoulder buffing.
Surplus rubber thickness measurement.
Technical description:
Overall: 2600mm*2300mm*2300mm
Gross weight: 2200 KG
Rim diameter range: 25’’
Air pressure: 0.75 MPA
Voltage & frequency: 380V
Power: 18 KW
Average buffing time: 20 min
