| Another Name: | Tire Polishing Machine / Tire Buffing Machine | Size: | 1600mm*2700mm*1800mm |
|---|---|---|---|
| Weight: | 1600 KG | Power: | 15 KW |
| Average Buffing Time: | 3 MIN | Air Pressure:: | 0.6 MPA |
| High Light: | tyre curing chamber,tyre buffing machine |
||

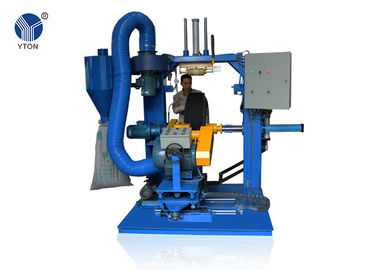

Automatic Buffing Machine For Tire Retreading Machine New Condition
Standard function description:
1, Buffing radial range: 450~800 mm.
2, Buffing machine have dust collecting system, it can automatically collect rubber powder into bag, smoke through the pipeline to outdoor.
3, Auto air inflation, before the grinding, inflate certain pressure into the tire; remain the tire outline in normal shape.
4, With double pressure protection device can better ensure the safety of the pressure.
5, With portal frame, exact centering, buffing different size of tires, easy to change exclusive chuck.
6, Automatic tire lifting, reduce the labor force.
7, With hydraulic automatic control of grinding surface radian, swinging.
Optional function:
Sidewall buffing and brushing arm.
Tread circumference measurement.
Manual shoulder buffing.
Double arc shoulder buffing.
Surplus rubber thickness measurement
The complete retreading production line is mainly included:
Tire retreading machines-Curing chamber, Vulcanizing Tank, buffing machine/grinding machine, tread building machine, rubber stirring machine, rubber extruding machine, envelope spreader, steel rim disassemble machine, rubber crumb dust collector, tyre conveyor/Monorail, repair machine, handcart, hook, inspect machine, all necessary accessories ,etc.
