Product Details:
Payment & Shipping Terms:
|
| Another Name: | Vulcaniing Equipment | Size: | 2.3*2.3*6.3 M |
|---|---|---|---|
| Air Pressure: | 0.75MPA | Voltage: | 380V |
| Power: | 52/63KW | Characteristic: | PLC Automatic Control |
| High Light: | tire recapping equipment,rubber buffing machine |
||

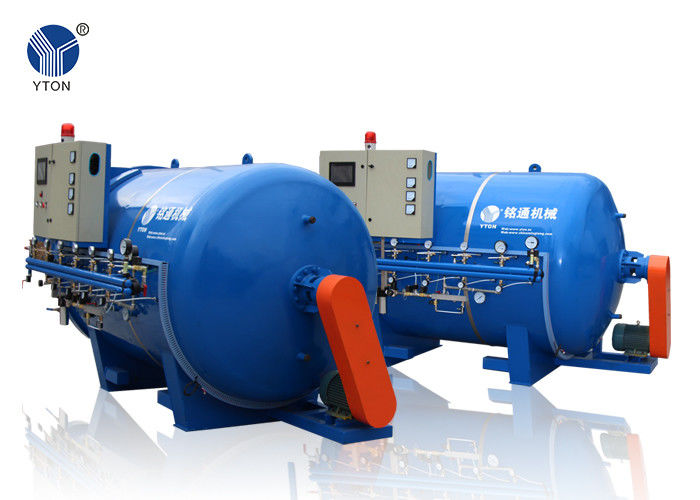

Electric Curing Chamber Tire Recapping Machine New Generation
Standard function description:
1, Fast open door and three trip lock for safety.
2, PLC system controls temperature, pressure, and curing time.
3, The pressure, temperature record can be saved for 1 month during the curing
process; it can be checked anytime for previous producing temperature and
pressure.
4, Operate page have variety of language selecting, even small language can meet
the need of user.
5, Automatic compensation functions on temperature, pressure and time.
6, Without inner tube, different pressure control system for envelope and curing
chamber.
7, Three kinds heating for selecting: eclectic heating, steam heating, oil heating
(standard one is electric heating, if select oil heating, extra add a conduction oil
stove.)
Technical description:
Overall:2300mm* 2300mm*6300mm
Gross weight:3800 KG
Suitable for tire range: tire external diameter ≤1.2M.
Air pressure: 0.75 MPA
Voltage & frequency: 380V
Power:52/63KW
Average curing time: 5 hours.
Characteristic:PLC automatic control.
Cold Tyre retreading line including 10 machines
1. Curing chamber
2. Tire buffing machine
3. Tire building machine
4. Envelope spreader
5. Rims remover
6. mixing machine
7. Extruding machine
8.Dust-collector
9. Tire conveyor
10.Inspection machine
