| Another Name: | Buffing Plus Building Machine | Size: | 1600mm*2700mm*1800mm |
|---|---|---|---|
| Weight: | 1600 KG | Function: | Buffing And Building Rubber Together |
| Voltage: | 380V | Power: | 15KW |
| High Light: | tire retreading equipment,tyre retreading plant |
||

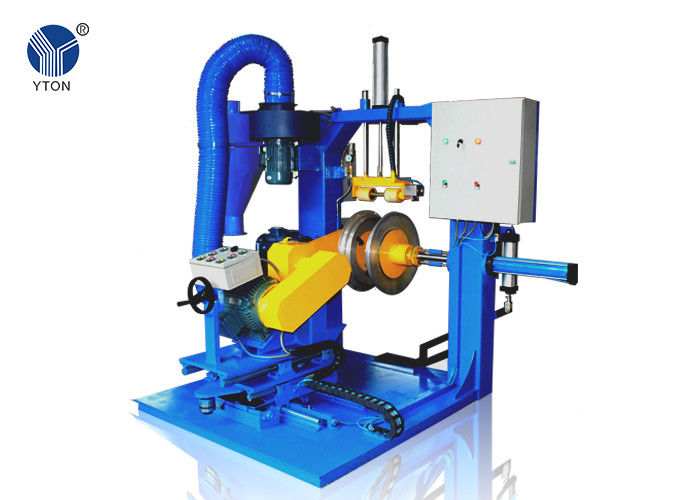

Tire Retreading Equipment Buffing And Building Machine Two-In-One
Standard function description:
1, Buffing radial range: 450~800 mm.
2, Buffing machine have dust collecting system, it can automatically collect rubber powder into bag, smoke through the pipeline to outdoor.
3, Auto air inflation, before the grinding, inflate certain pressure into the tire; remain the tire outline in normal shape.
4, With double pressure protection device can better ensure the safety of the pressure.
5, With portal frame, exact centering, buffing different size of tires, easy to change exclusive chuck.
6, Automatic tire lifting, reduce the labor force.
7, With hydraulic automatic control of grinding surface radian, swinging.
8, Auto air inflation and with portal frame, exact centering.
9, Separate building roller, increase air exhaust efficiency.
10, Double rotation speed control.
11, Break control by foot switch.
Optional function:
Sidewall buffing and brushing arm.
Tread circumference measurement.
Manual shoulder buffing.
Double arc shoulder buffing.
Surplus rubber thickness measurement.
