Product Details:
Payment & Shipping Terms:
|
| Another Name: | Tire Curing Chamber | Size: | 2.3*2.3*6.3 M |
|---|---|---|---|
| Power: | 52 / 63KW | Voltage: | 380V |
| Air Pressure: | 0.75 MPA | Feature: | PLC Control |
| High Light: | tire remoulding equipment,tire buffing equipment |
||

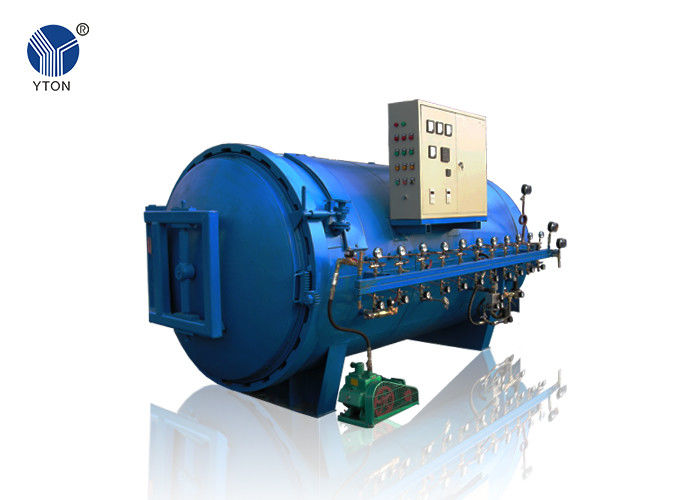

New Condition Curing Chamber For Tire Remoulding Machine Truck Tyres
Tyre models can be retreated
650-16,750-16,825-16,750-20,825-20,900-20,1000-20,1100-20,1200-20,11R22.5,12R22.5,13R22.5
Service we offer:
1. Help you ship the machine to your city;
2. Offer the raw material constantly;
3. Teach you how to use this machine;
4. Offer technical support when you need help
Standard function description:
1, Fast open door and three trip lock for safety.
2, PLC system controls temperature, pressure, and curing time.
3, The pressure, temperature record can be saved for 1 month during the curing process; it can be checked anytime for previous producing temperature and pressure.
4, Operate page have variety of language selecting, even small language can meet the need of user.
5, Automatic compensation functions on temperature, pressure and time.
6, Without inner tube, different pressure control system for envelope and curing
chamber.
7, Three kinds heating for selecting: eclectic heating, steam heating, oil heating (standard one is electric heating, if select oil heating, extra add a conduction oil stove.)
Technical description:
Overall:2300mm* 2300mm*6300mm
Gross weight:3800 KG
Suitable for tire range: tire external diameter ≤1.2M.
Air pressure: 0.75 MPA
Voltage & frequency: 380V
Power:52/63KW
Average curing time: 5 hours.
Characteristic:PLC automatic control.
